4 bit ALU by Schmolendevice

Schmolendevice
Schmolendevice
6 / 0
14th Apr 2012
2nd Aug 2012

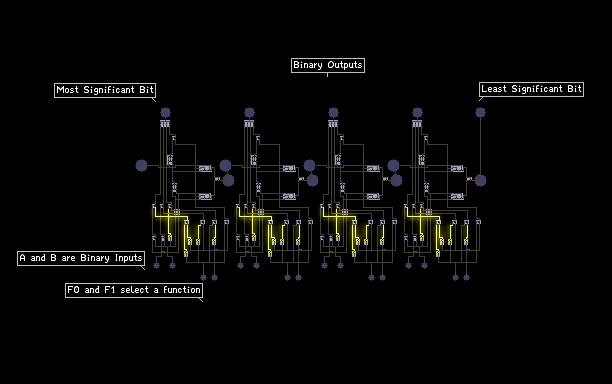

F0 = 0, F1 = 0 - AND, F0 = 1, F1 = OR, F0 = 0, F1 = 1 = A, Not B, F0 = 1, F1 = 1 (let F0 complete its state before you activate F1) = A + B. Place BTRY on the inputs of the ALU to operate.

Comments

  • Schmolendevice
    Schmolendevice     14th Jul 2016
    This was from a long time ago, but I can't believe I mixed up the positions of most and least significant bit.
