Boiling Water Reactor 5 by dornog70

dornog70
dornog70
7 / 0
12th January
3:50:14

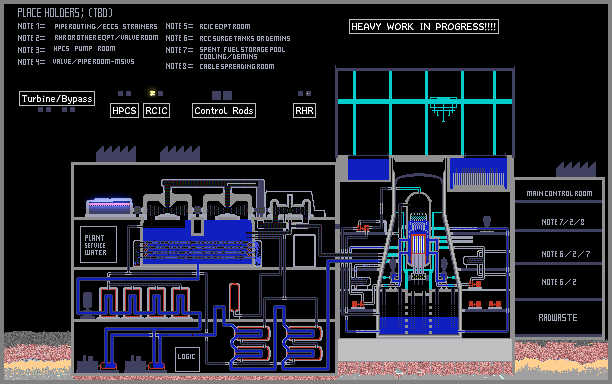

Boiling Water Reactor (BWR) 5. Has a turbine, reactor, and radwaste/control building along with primary and auxiliary systems. Is able to support 200-300C steam. This is heavily WIP**!! Report any errors in the comments and leave suggestions!

Comments

  • Thereactorguy2054v2
    Thereactorguy2054v2     3:26:33
    Holy crap this looks good
  • dornog70
    dornog70     3:14:39
    thats fine, current main problem is shutdown cooling being ineffective
  • pickle4L17
    pickle4L17     1:49:08
    There is steam in the recirc
  • pickle4L17
    pickle4L17     1:45:41
    Oh wow this reminds me of rbwr
  • dornog70
    dornog70     21st January
    (about 100 bar or so)
  • dornog70
    dornog70     21st January
    reactor will operate at about 300C at 1000-1400 psi
  • dornog70
    dornog70     21st January
    this design supports a large break LOCA and does have a pressure suppressing effect.
  • dornog70
    dornog70     21st January
    (cont) reactor building/radwaste-control building ventilation, turbine generator building ventilation, switchyard, switchgear in turbine building basement mezzanine and under main control room for vital switchgear
  • dornog70
    dornog70     21st January
    todo: fuel pool cleanup/cooling system, RHR SDC, RHR LPCI, low pressure core spray, containment sprays, drywell coolers, main control room, reactor building service water and reactor building closed loop cooling water, plant service water, SAFETY SYSTEMS, condensate storage, reactor water cleanup system (?), moisture seperator reheater along with HP drains to high pressure feedwater heaters
