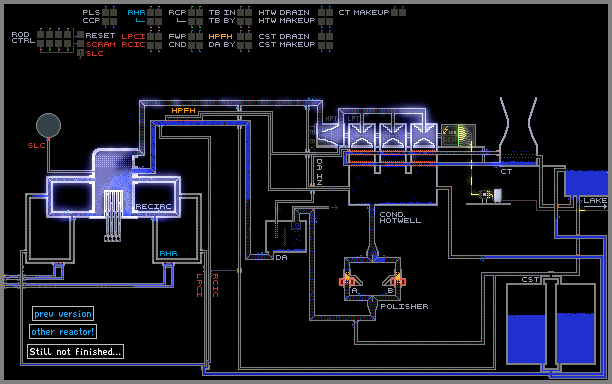

Boiling Water Reactor (BWR). Startup: disable RHR, withdraw rods, enable RCP, FWP, CND, CCP, HPFH, disable DA BY. On steam generation, enable TB IN and disable TB BY. Makeup as needed. Shutdown: enable RHR, disable RCP, SCRAM. Emergency: LPCI, RCIC, SLC

nuclear reactor boiling realistic steam turbine generator

Comments

ArandomTPTGuy 13th July

*experience from RBWR like dornog has
ArandomTPTGuy 13th July

the preaheat and DA steam inputs dont get much but based on experience they should get alota steam, a DAing condenser as dornog said could just remove the DA issue as then the DA has steam from bypass/turbine since its in a condenser
Riches8407 12th July

Thanks dornog :))
dornog70 11th July

also, most BWR typically do not have dearators. but deaerating condensers.
dornog70 11th July

This is a cool concept i like it, would be nice if there were actual heat exchangers for RHR and feedwater heating.
arlox222 11th July

good +1
MegaKnight86 9th July

i very much hate reaktor with no auto (my attention span is 0,62354 seconds) but this is great +1
Riches8407 9th July

I'm not entirely sure what a NNN switch is in the context of a GE BWR reactor! Could you explain?
Mazunga 9th July

its a good idea trust
Mazunga 9th July

Emergency NNN switch
