ALU: 4-bit adder by konsole

konsole
konsole
7 / 1
20th Apr 2014
25th May 2014

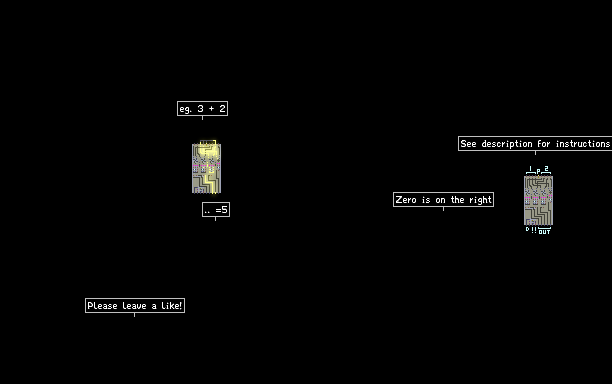

Pins: 1,2,3,4=num1 binary, 5=power, 6,7,8,9=num2 binary, 10=DLAY output, 11=DLAY input, 12=NOT output, 13=NOT input, 14,15,16,17,18=num1+num2 output.
